TBR-400 Single-lane Vehicle Flow Detecting Radar
TBR-400 单车道车流量检测雷达

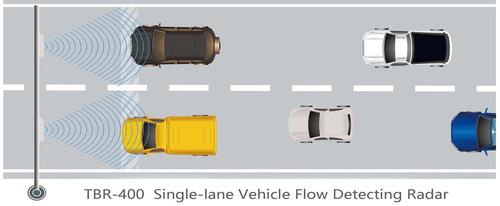

TBR-400 is a non-contact vehicle flow measuring radar designed for detecting single lane information, such as  flow, speed, lane occupancy, car models,traffic congestion and other basic traffic information. TBR-400 can distinguish bus and car which can be used to detect the vehicel running in exclusive bus lane. it can also applied to detect the vehicle information of left turn lane or right turn lane in important traffic area.

Key features:

   ■ easy to install and maintain

     adaptable to harsh enviroment or poor lighting conditions

    high accuracy traffic measure data

     ■ provide measuring information such as car model in real time

Typical application:

     traffic flow data collection system

     ■ road operation and management system

     ■ traffic lights control system

     ■ bus lane management system



 Frequency 24.15 GHz
 Detect range 5 ~ 90 m
 Installation method overehead
 Installation height 5 ~ 8 m
 Detection information vehicle flow, lane occupacy, speed, car model
 Car models supersize car, oversize car, mid size car, small car, motocycle
 Flow accuracy > 95%
 Lane occupacy accuracy > 95%
 Speed accuracy > 95%
 Speed range (2 ~ 300) km/h
 Upload cycle   minumum 1s, customizable set
 Congestion judgement provide real time congestion level through detection information
 Congestion level smooth, slow, congestion, heavy
 Remot update support
 Interface RS232 or RS485
 Power (9~16) VDC
 Power consumption < 2 W
 Operating temp -40℃ ~ 70℃
 Operating humidity 5% ~ 95%
 Ip grade IP67
 Weight 0.9 kg
  Size 227 mm × 189 mm × 56 mm
