TBR-300 Vehicle Speed Measuring Radar
Overview
Specification
Download
Overview

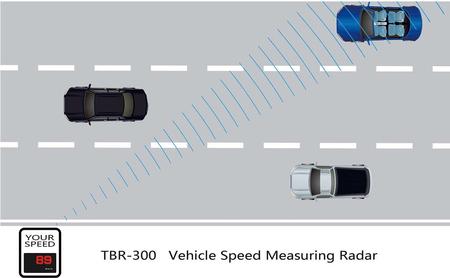

TBR-300  microwave radar is designed for detecting vehicle's speed, giving warnings to speeding drivers reducing speed through flashing LED or color change, which help to reduct traffic accidents effectively.


Key features:

     ■ small size, light weight, easy installation

     ■ detection range up to 200m

     ■ adaptable to harsh enviroment or poor lighting conditions

     ■ cover multiple lanes


Typical application:

     ■ hospital

     ■ school

     ■ factory

     ■ cross road



Specification


 Frequency 24.15 GHz
 Lane number 4 lanes
 Speed range (2 ~ 400) km/h
 Speed accuracy (-1 ~ 0) km/h
 Detect range (10 ~ 200) m
 Detect Vehicle flow support
 Update cycle 25 ms
 Detect vehicle direction approaching, receding
 Remot updat support
 Interface RS232 or RS485
 Power (9~16) VDC
 Power consumption <2 W
 Operating temp -40℃ ~ 70℃
 Operating humidity 5% ~ 95%
 Weight 0.4 kg
 Size 116 mm × 90 mm × 40 mm





Download
TBR-300 车速反馈仪雷达.pdf
327.69KBDownload
