TBR-220 Multi-objects Speed Measuring Radar
Overview
Specification
Download
Overview

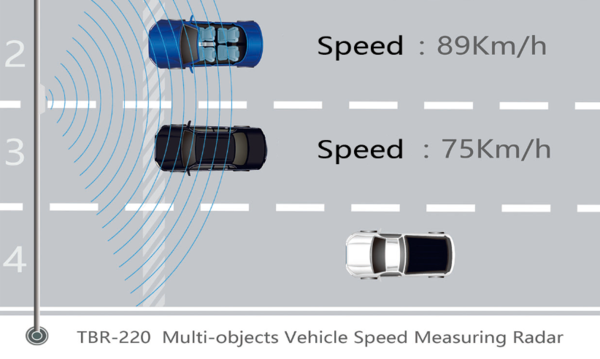

TBR-220 microwave radar is designed for multiple vehicles' speed measurement and camera trigger in multiple lanes, and distinguish vehicles' speed even if  these vehiclel arrive at the same time. TBR-220 can be widely applied to speed monitoring on highway, intercity highway, urban road , rural road, etc..


Key features:

     ■ cover multiple lanes with a single radar

     ■ can connect to one or more radars

     ■ multi-objects tracking technique, able to locate each vehicle's lane and speed

     ■ provide accurate trigger signal within 1m


Typical application:

     ■ speed measuring bayonet

     ■ security bayonet

     ■ traffic electronic fence

     ■ retrograde drive capture




Specification



 Frequency 24.15 GHz
 Beam width 4.5° × 5°
 Speed range (2 ~ 400) km/h
 Speed accuracy (-1 ~ 0) km/h
 Capture rate > 99%
 Trigger accuracy < 1 m
 Trigger position (15 ~ 35) m
 Trigger mode head or tail
 Vehicle length info support
 Traffic flow info support
 Update cycle 12.5 ms
 Direction approaching , receding and both
 Remote software update support
 Interface   RS232 or RS485
 Power (9 ~ 16) VDC
 Operating power < 2 W
 Operating temp -40℃ ~ 70℃
 Operating humidity 5% ~ 95%
 Ip grade IP67
 Weight 0.9 kg
 Size 227 mm × 189 mm × 56 mm






Download
TBR-220 多目标测速雷达.pdf
354.96KBDownload
