TBR-200 Multi-lanes Speed Measuring Radar
Overview
Specification
Download
Overview

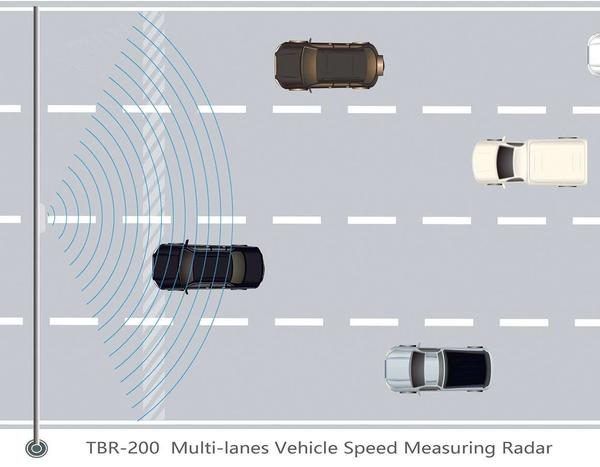

TBR-200 microwave radar operates in the 24.15GHZ band and offers cost-effective speed measurement for camera trigger purposes. It can be easily installed and integrated into host camera enforcement systems .TBR-200 can cover mutiple lanes and be applied to multiple scenarios,such as highway, intercity highway, urban road for vehicle speed measurement.


Key features:

    ■ a radar can cover multiple lanes

    ■ no affected by weather or lighting conditions, accurately triggers camera even in dark light

    ■ need no light-compensating lamp, do not affect driver's sight

    ■ low power consumption

    ■ easy to install and maitain

    ■ lower cost than induction coil

    ■ connect to camera or bayonet host easily


Typical application:

    ■ speed measuring bayonet

    ■ security bayonet

    ■ traffic electronic fence

    ■ retrograde drive capture



Specification


 Frequency 24.15 GHz
 Beam width 4.5° × 5°
 Speed range (2 ~ 400) km/h
 Speed accuracy (-1 ~ 0) km/h
 Capture rate > 99%
 Trigger accuracy < 1 m
 Trigger position (15 ~ 35) m
 Trigger mode head or tail
 Vehicle length info support
 Traffic flow info support
 Update cycle 12.5 ms
 Direction approaching , receding and both
 Remote software update support
 Interface   RS232 or RS485
 Power (9 ~ 16) VDC
 Operating power < 2 W
 Operating temp -40℃ ~ 70℃
 Operating humidity 5% ~ 95%
 Ip grade IP67
 Weight 0.9 kg
 Size 227 mm × 189 mm × 56 mm
















Download
TBR-200 多车道测速雷达.pdf
367.16KBDownload
